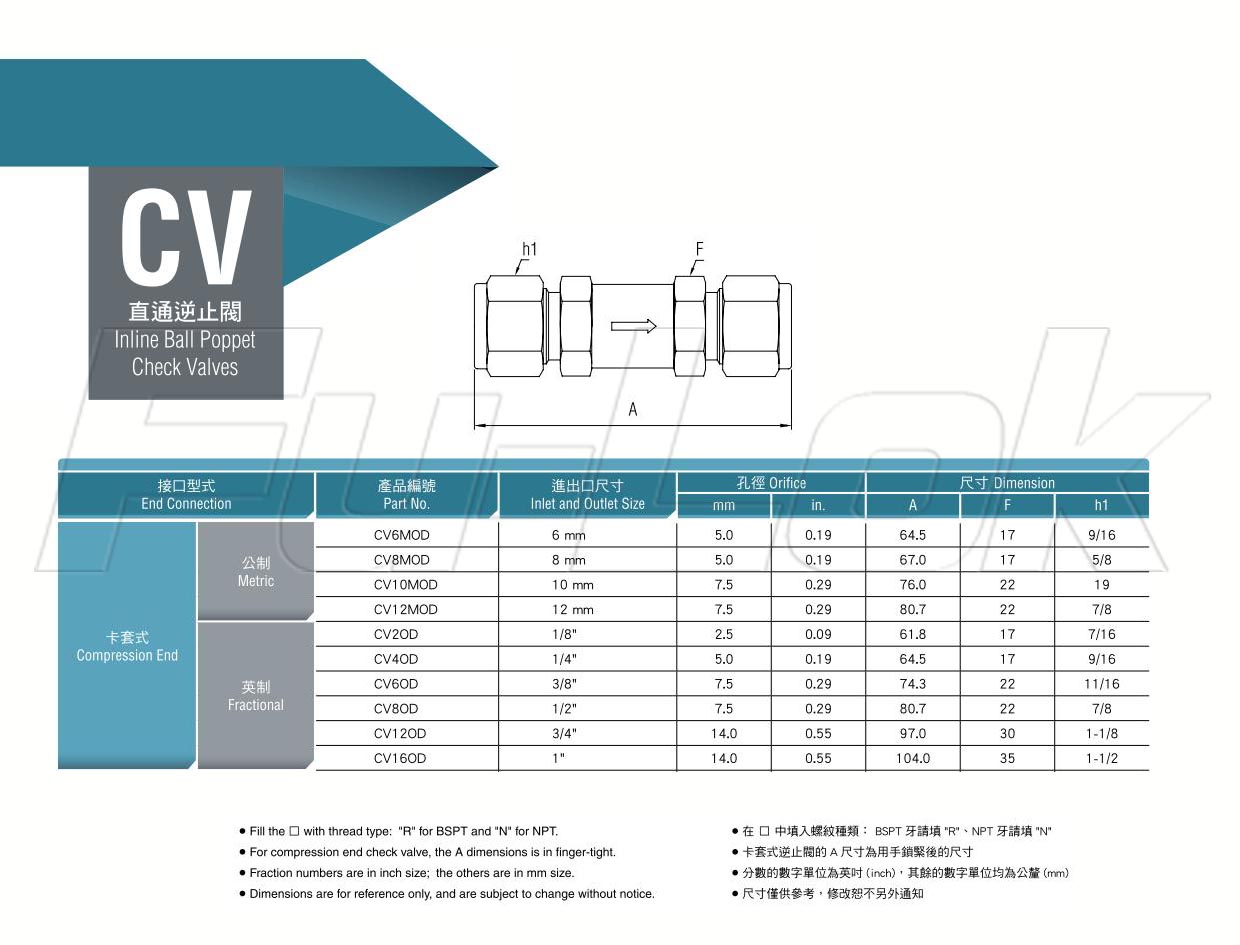

• Inline Ball Poppet Check Valves-Compression End

Inline Ball Poppet Check Valves-Compression End

Material:

SS316

Features:

1.Ball design provides effective leak-free closure with minimum flow resistance
2.Cracking pressures 1 psig
3.Maximum working pressure: 2000 psig (140 bar)
4.Temperature rating range: -20°C~+180°C (-4°F ~ +356°F) with Viton packing
5.Each valve is stamped with material and size

Production Range:

Compression End, Metric: (OD)6mm~12mm
Compression End, Fractional: (OD)1/8"~1"
