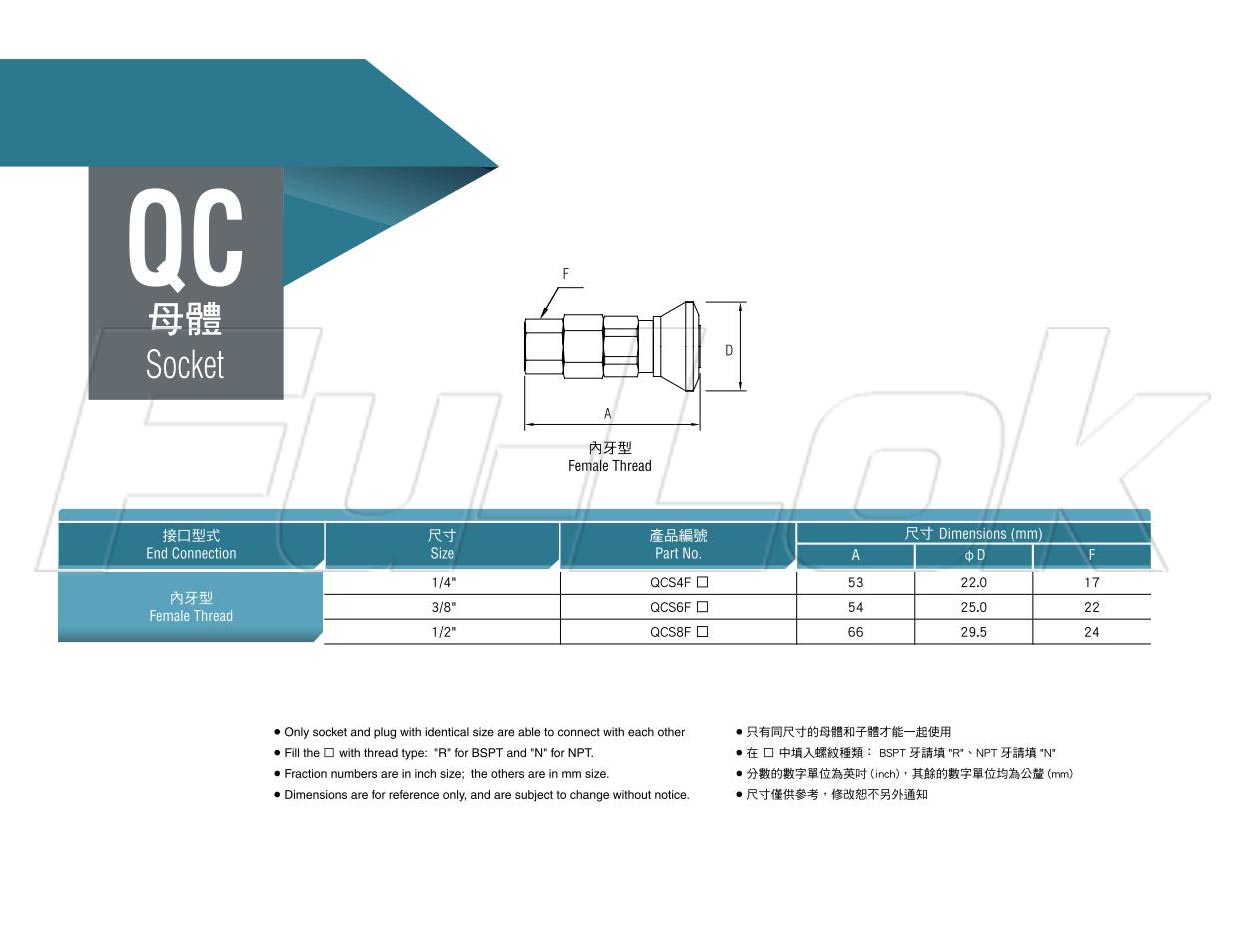

• QC/ Socket-Female Thread

QC/ Socket-Female Thread

Material:

SS316

Features:

1.DESO (double-end shoutoff) design prevents the leakage when disconnected
2.Maximium working pressure up to 3000 psig (206 bar)
3.Heavy-duty sleeve shields the open end of body (socket)
4.The locking device in body (socket) holds stem (plug) with large contact area to increase the stability
5.Choice of replaceable end connections provides added system versatility

Production Range:

1.Size:1/4"~1/2"
2.Thread Type: BSPT Thread(R)、NPT Thread(N)
