3-piece High Pressure Ball Valve 3-Way Pattern

Material:

SS316

Features:

1.Maximum working pressure: 2000 psig (138 bar) for square bar stock body.
2.Switch service for 3-way pattern.
3.Low torque operation handle with arrow indicates flow direction.
4.Quick operation 1/4 turn on-off control of fluids utilized in process and instrumentation applications.
5.Panel mounted.
6.Each valve is stamped with material and size.
7.Temperature rating range: -20°C~+180°C (-4°F ~ +356°F).

Production Range:

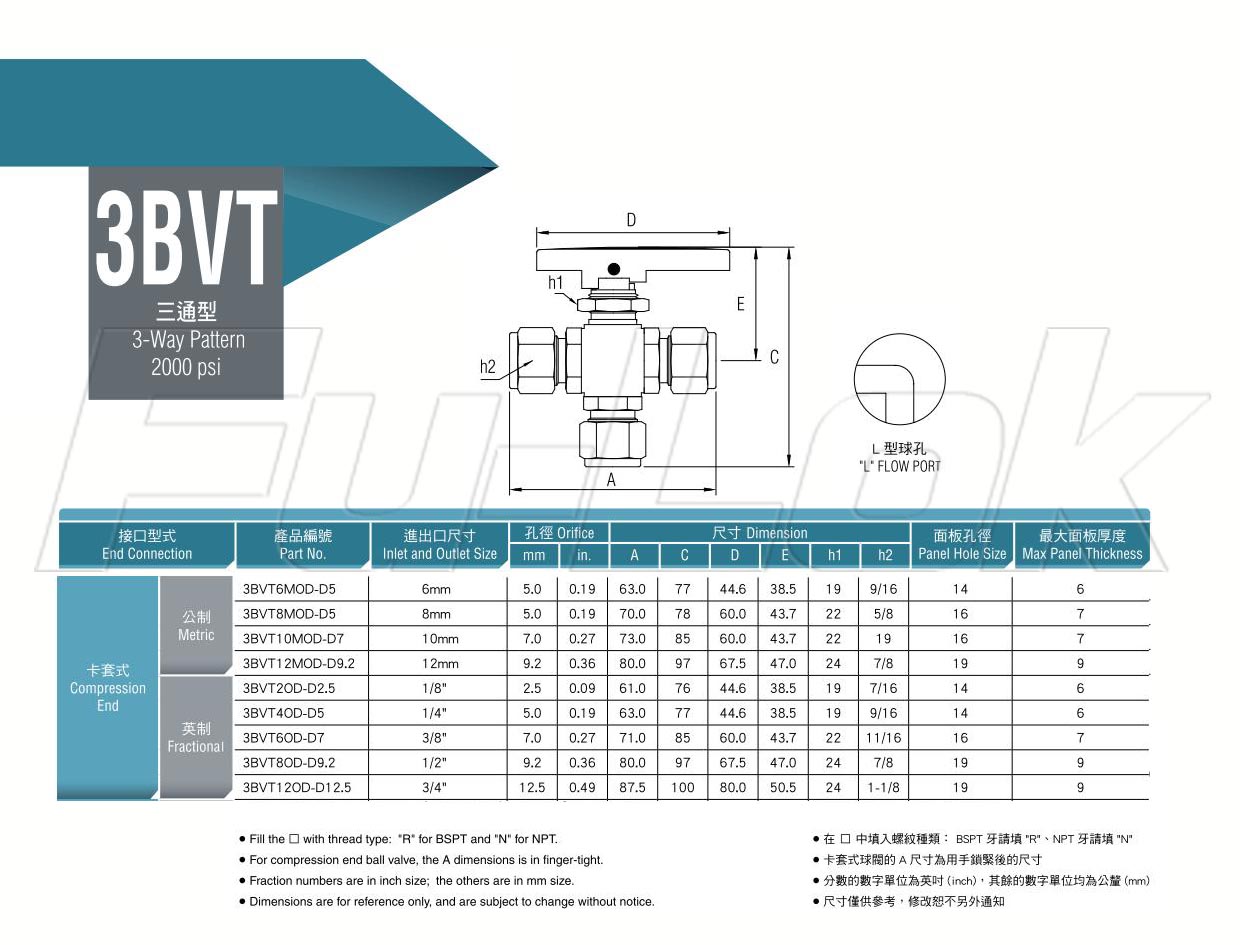

1.Compression End, Metric: (OD)6mm~12mm
   Compression End, Fractional: (OD)1/8"~3/4"

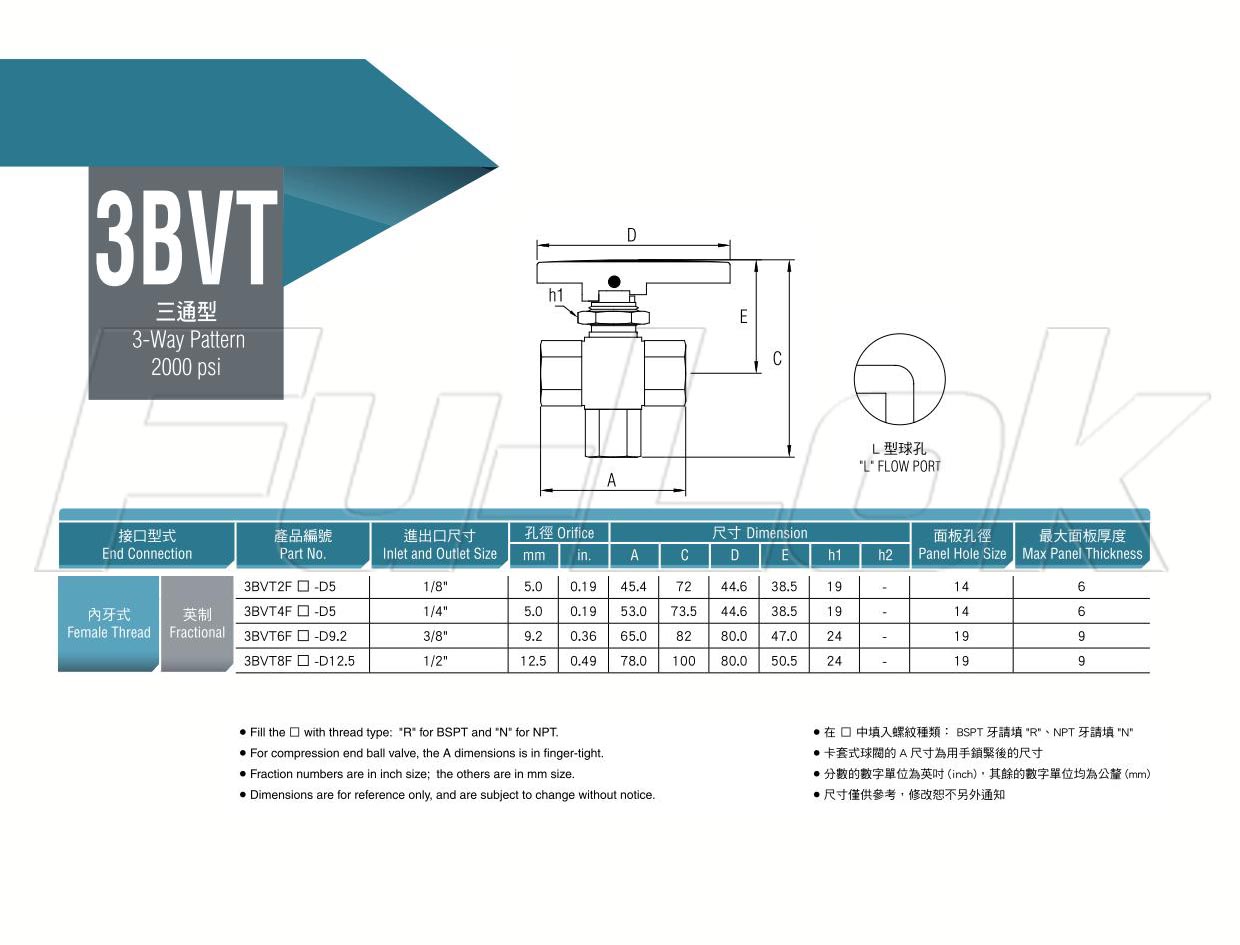

2.Female Thread: 1/8"~1/2"

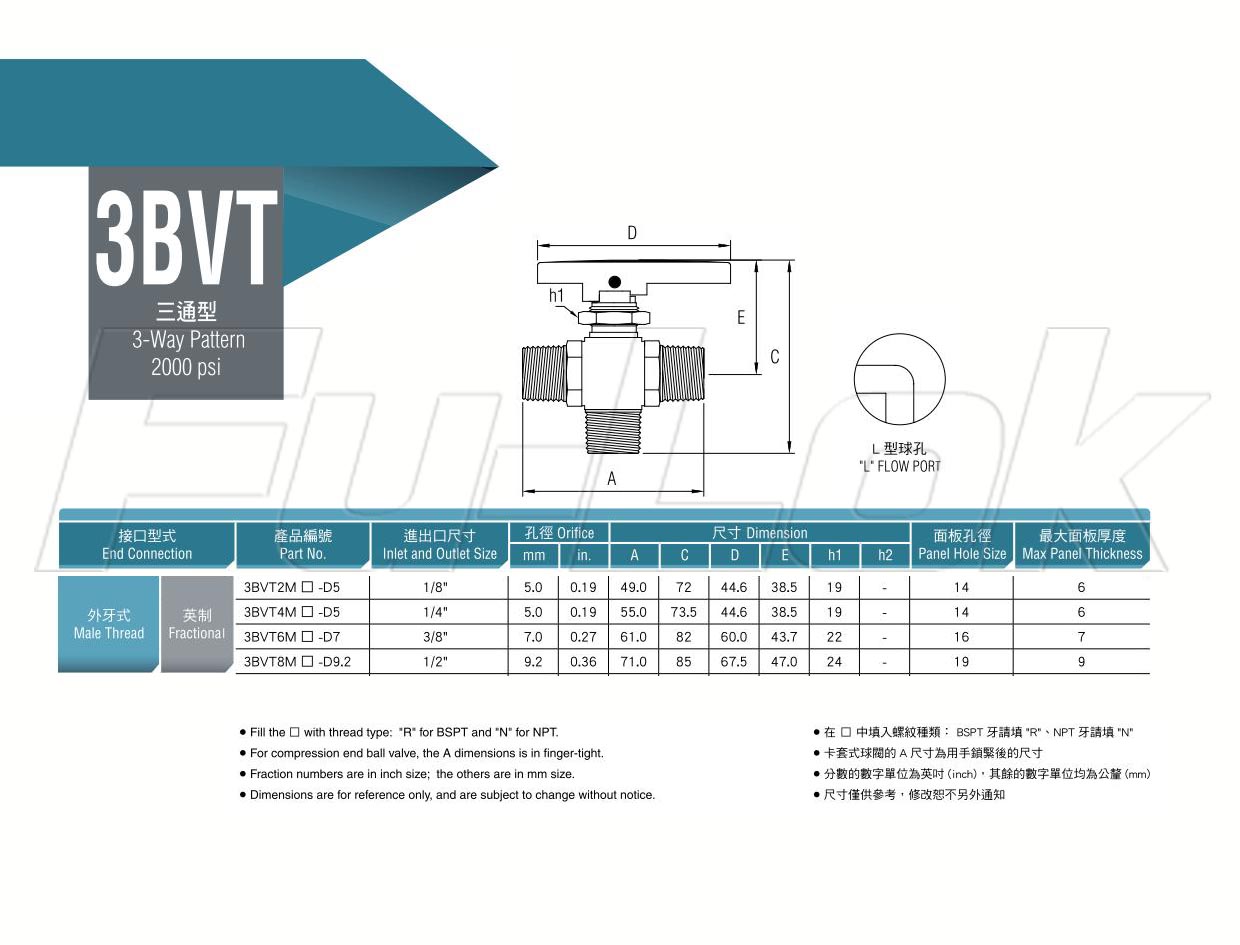

3.Male Thread: 1/8"~1/2"
