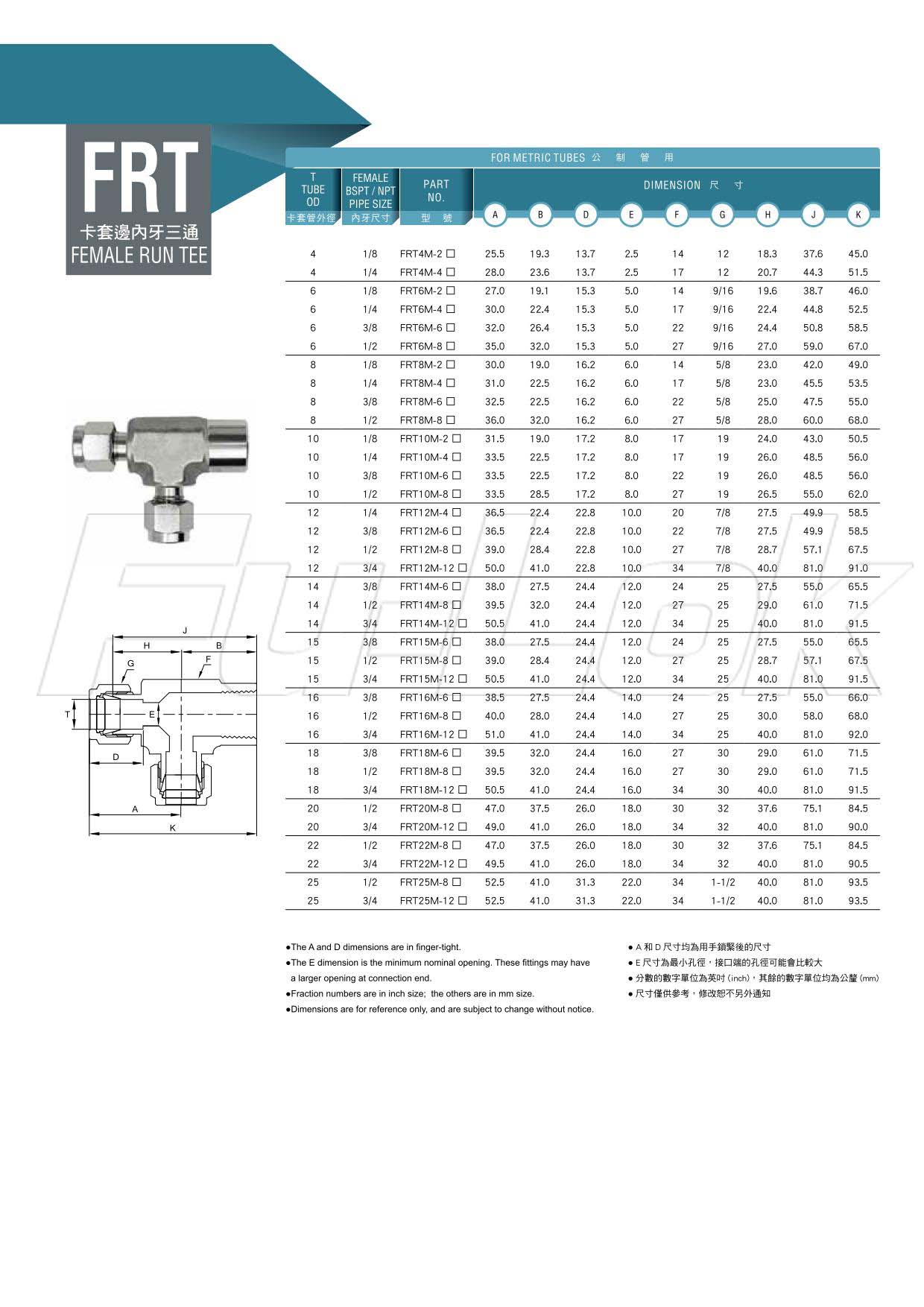

Female Run Tee

Model : FRT

Q'ty :

Specifications

Material:

SS316

Features:

1.Double-ferrule design.
2.Silver-plated nut threads eliminate the attrition of body threads.
3.Easy to assembly and no special tools required.
4.Designed for use on instrumentation,process and control systems,and analyzer.

Production Range:

Compression End
1.For Metric Tube:(OD)4mm~25mm
2.For Fractional Tube:(OD)1/8"~1"

Thread End
1.Thread Size: 1/8"~3/4"
2.Thread Type: BSPT Thread(R)、NPT Thread(N)
