• Reducer

Reducer

Model : R

Material:

SS316

Features:

1.Double-ferrule design.
2.Silver-plated nut threads eliminate the attrition of body threads.
3.Easy to assembly and no special tools required.
4.Designed for use on instrumentation,process and control systems,and analyzer.

Production Range:

Compression End

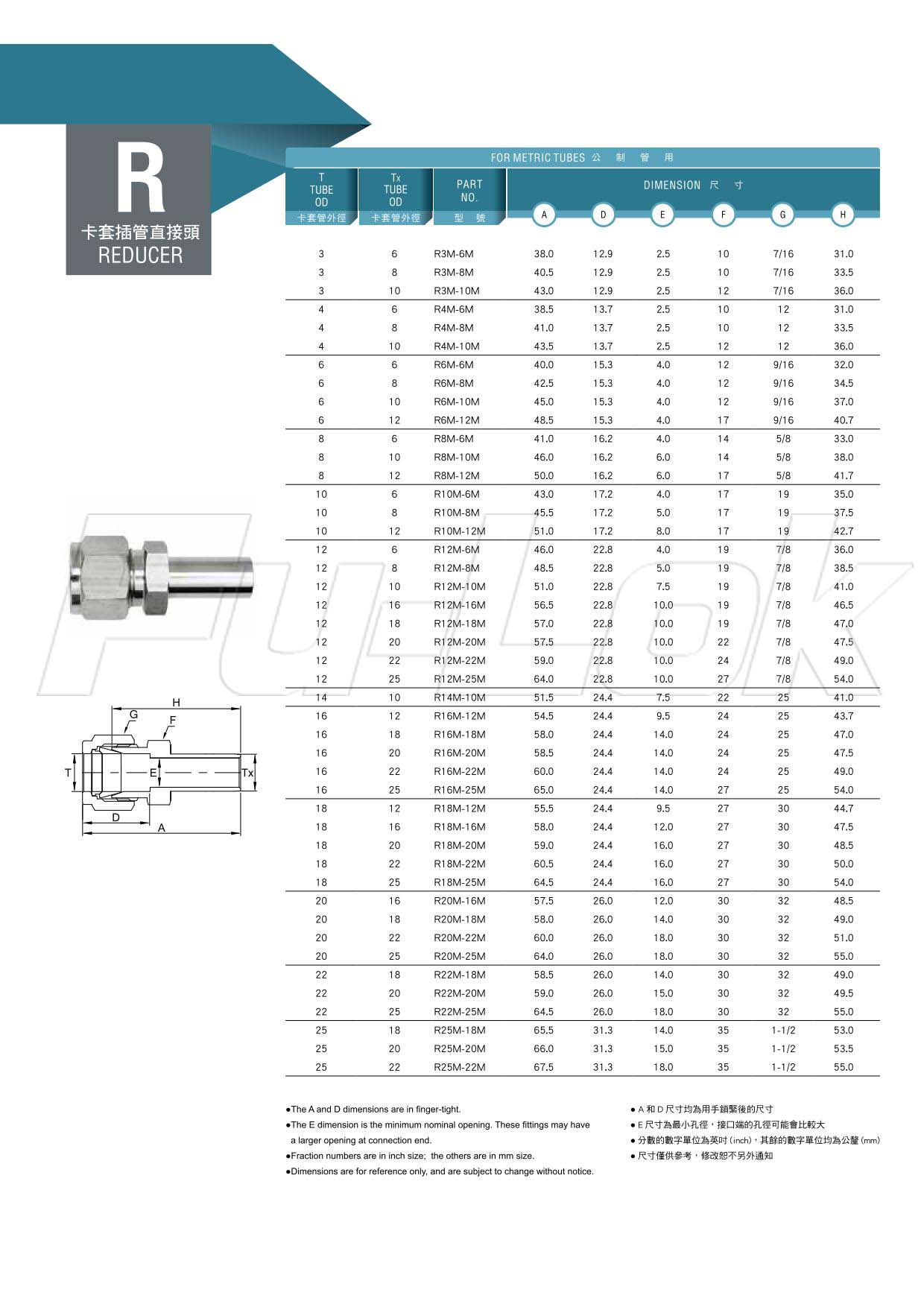

1.For Metric Tube:(OD)3mm~25mm

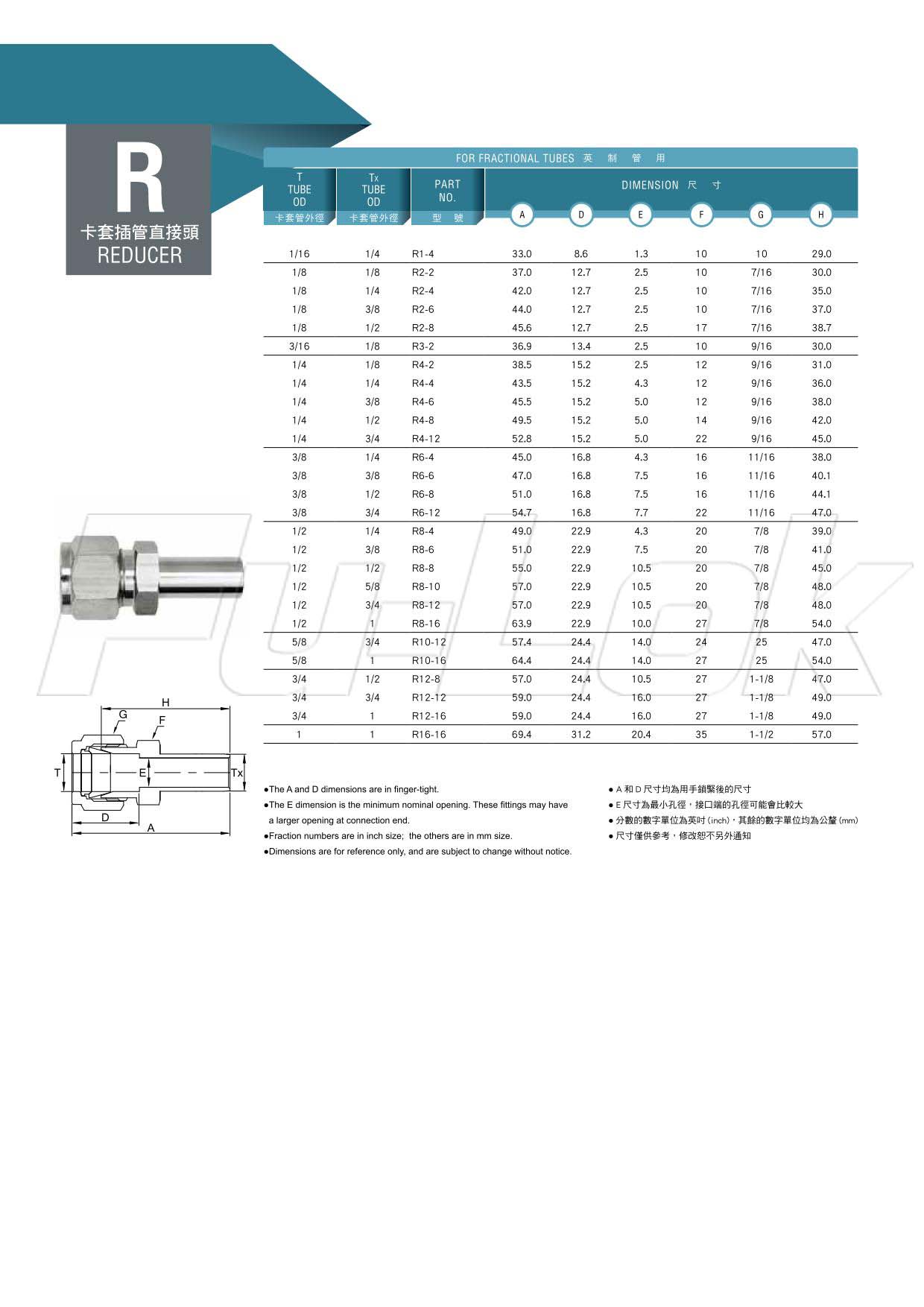

2.For Fractional Tube:(OD)1/16"~1"

Tube End
1.Metric Tube:(OD)6mm~22mm
2.Fractional Tube:(OD)1/4"~1"
